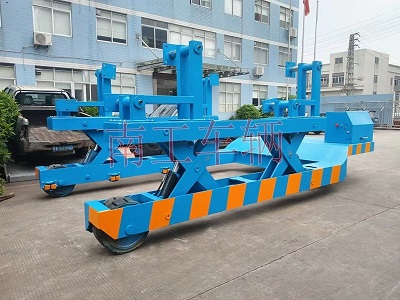

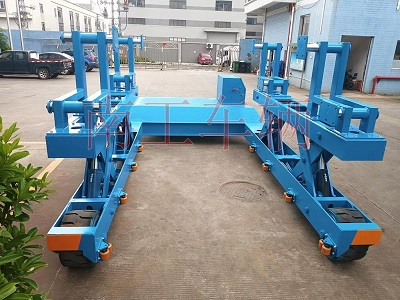

15 ton U-shaped lifting flat car

Brand: Nangong, model: NGTT15L-23/66-6S, load capacity: 15 tons, board size: 6.6 * 3.3 meters, color: sky blue, net weight: 5300KG;

Detailed configuration of a 15 ton U-shaped lifting flatbed truck:

1. The flat car is designed as a U-shaped structure, with a main beam made of 30 # welded steel and a load-bearing capacity of 15 tons. The overall dimensions of the frame are 6.6 meters in length, 3.3 meters in width, and 0.9 meters in height. The U-shaped internal space is 4.3 meters in length and 2.5 meters in width;

2. This car has a total of 6 compression tires, including two models at the rear, 22-12-16, with a single load capacity of 5.1 tons. There are four models at the front, 18 * 9 * 12 1/8 wheels, with a rated load capacity of 3.1 tons per wheel, without the need for inflation and maintenance, improving work efficiency;

3. The design concept of the front wheels of this car is suspended, which can be adjusted according to the smoothness of the road surface, facilitating small radius turning and transportation, and balancing the load force of the tires on their own;

4. The steering mechanism adopts a rotary table type rotating assembly with a rotation angle of 220 degrees, which is convenient for turning in small spaces;

5. Height adjustable traction frame, convenient for towing vehicles with different traction heights;

6. Double scissor fork lifting mechanisms are designed on both sides of the vehicle body. The mechanism can use hydraulic oil cylinders to lift the power, lift the equipment to be transported off the ground, drive to the destination, lower it through the mechanism, place the equipment on the ground, and drive the trailer away;

7. The support frame is designed into two parts: a fixed seat and an expansion seat. The corresponding expansion seat can be selected according to the need to lift the workpiece installation seat and matched for installation. When not in use, the expansion seat can be folded within the width range of the frame to avoid interference from the mechanism;

8. A set of 24V200A battery pack with 24V30A charger for the power source, and a set of 24V 3KW power motor and a set of synchronous valve for the power station;

9. Color: Sky blue, with orange warning stripes sprayed on both sides;

The 15 ton U-shaped lifting flat trailer is a long-term non-standard customized vehicle for Nangong vehicles, with high load-bearing capacity, low cost, and long service life.

Application: Used for short distance transportation of special equipment loading, with non-standard design according to customer requirements. It can be lifted and lowered, and can be towed by forklifts and tractors.
