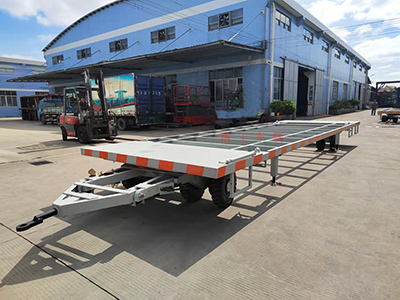

Brand: Nangong, Model: NGTT16BM-24/80-8S, Capacity: 16 tons, Table size: 8.065 * 2.438 meters, Net weight: 2.4 tons

Technical requirements (specific to the technical solution diagram confirmed by both parties):, color: gray;

1. This flatbed trailer has a load capacity of 16T, a length of 8.065 meters, a width of approximately 2.438 meters, and a height of approximately 0.78 meters;

2. The structure of this car owner is made of 20 # section steel, and the auxiliary beam is welded with 16 # section steel. This car is a skeleton type without planking;

3. This vehicle has 8 models of 18 * 9-12 compression fit solid tires, with a single wheel load of 3.2T and a rated speed of 15KM/H;

4. This car is equipped with parking brakes (handbrake, two wheel brakes);

5. This vehicle is equipped with 4 threaded legs;

6. Equipped with a buffered traction frame, effectively reducing the impact force caused by emergency parking during the operation of trailers and towing vehicles;

7. Each corner of this vehicle is equipped with a container corner lock;

8. The left and right rotation angle of the front wheels is 180 degrees, which is convenient for small radius turning;

9. The steering mechanism is a rotary table type machine rotating assembly (16T), which operates smoothly and has a long service life;

10. Color: According to the color card sample provided by the customer.

The skeleton multi-purpose trailer products produced by Guangdong Foshan Nangong Vehicles are of stable and reliable quality, and can be customized non-standard according to different customer needs. They have the characteristics of heavy load, low cost, good quality, and excellent price

Application: Medium industrial skeleton multi-purpose trailer is suitable for use in industries such as airports, hardware, ceramics, plastics, and chemicals.
