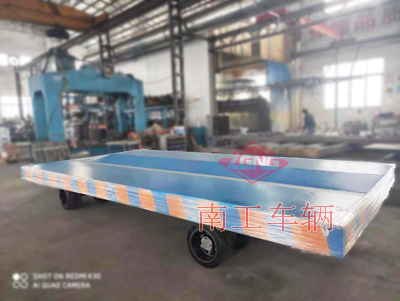

Brand: Nangong, model: NGTT20-26/51-8S, load capacity: 20 tons, board size: 5.1 * 2.6 meters, color: blue, net weight: 3090KG;

Detailed parameters of a 20 ton sunken towing heavy-duty flat trailer:

1. Full trailer, with a load-bearing capacity of 20 tons, the main structure is made of 20 gauge steel, with a plate surface of 8MM steel plate. The flat car is 2.6 meters wide, 5.1 meters long, and about 0.79 meters high. The low plate surface in the middle of the car is designed with a concave design, which allows for the transportation of plate shaped items and facilitates the fixation of rolled items, reducing the load center, greatly enhancing driving stability, and improving work efficiency;

2. The tires are 8 18 * 9 * 12-1/8 compression tires, with a single wheel load of 3.3 tons and a speed of 15km/h;

3. The design concept of this car is a multi axle independent steel suspension, which can adjust the body level and balance the tire load force according to the smoothness of the road surface;

4. Cushioned traction frame, effectively alleviating the impact force between the tractor and the flatbed during starting or braking, effectively avoiding component damage, as well as collision and damage to the cargo being transported;

5. The left and right rotation angle of the front wheels is 180 degrees, and the large rotation angle is convenient for small radius steering. The operation is simple and convenient;

6. Color: Blue.

The 20 ton sunken traction heavy-duty flat trailer has been extensively customized by Nangong vehicles for a long time. The Nangong flat trailer has the characteristics of long design life, low usage cost, and short manufacturing lead time.

Application: Heavy flat trailer is used for short distance transportation of heavy products such as metallurgy, molds, machinery, etc. It uses solid pressed tires with a speed of 15KM/H, and is of good quality and maintenance free.
