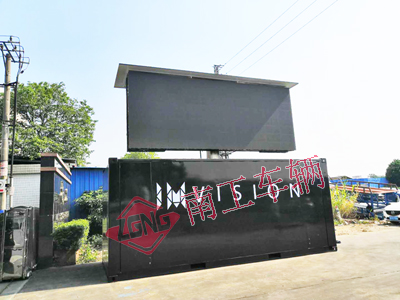

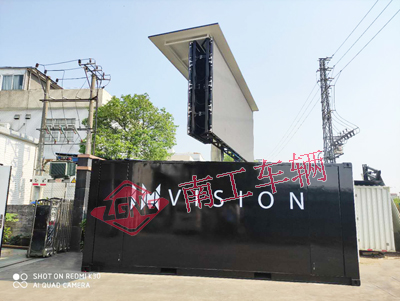

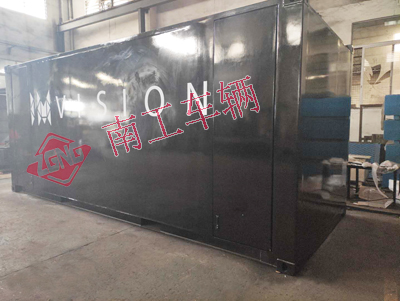

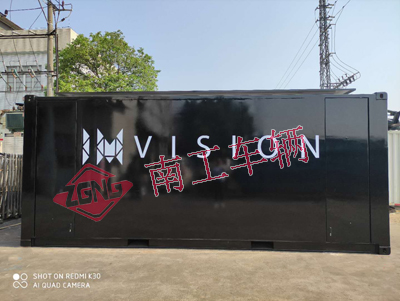

Advertising trailer 20 foot box type LED fully automatic hydraulic lifting

name:Advertising trailer 20 foot box type LED fully automatic hydraulic lifting

detailed information息

Brand: Nangong, model: NGADRV-24/60, load capacity: 1.5 tons, platform size: 2.438 * 6.058 meters, net weight: 3.8 tons

20 foot box advertising screen frame parameters

1. The corner mechanism and installation dimensions of the carriage are executed according to the 20 foot container standard, with a box length of 6.058M, a width of 2.438M, and a height of 2.591M. The carriage is surrounded by 3MM thick steel plates for edge sealing, with a flat and beautiful surface.

2. A single door is opened at the rear of the carriage, and a flip over door is designed at the top. The top door adopts an automatic opening type, and waterproof treatment is applied between the closed door and the carriage.

3. Two sets of small doors with hidden legs are designed at each corner of the carriage. The legs are hidden behind the door, and the leg travel is 1.6 meters, which can lift the entire box.

4. The size of the supporting display screen is 7 meters wide and (2+2) 4 meters high. The screen frame adopts a double beam structure with reliable strength and can withstand wind up to level 6. Due to the screen size being larger than the box frame, it is designed as a foldable lifting type and has a rotating function.

5. The screen frame rotation mechanism adopts a 5-ton rotary support, supporting 270 degree manual rotation of the display screen; The lifting mechanism adopts a straight arm lifting structure, with 2 built-in plunger type oil cylinders. After the screen frame is raised, the screen is lowered and 1 meter high from the box. The lifting power is a hydraulic power unit, with a hydraulic power specification of AC-24V16mpa.

6. The power source adopts a 24V100A battery with a 24V20A charger, and the control method adopts button operation. The entire mechanism operation is simple and practical.

7. Color: Overall painted black.

Advertising trailer with 20 foot box type LED fully automatic hydraulic lifting is professionally customized by Nangong. The advertising vehicle is used for corporate image promotion, product information release, indoor and outdoor commercial activities promotion, etc. The lifting and rotating function can be customized according to customer requirements, with beautiful appearance and flexible use.

Application: The LED advertising trailer multimedia system can achieve live broadcasting, live streaming, equipped with professional stage audio, and can perform small karaoke performances on site. The built-in TV receiver can synchronously broadcast programs with the TV station, and can also be used for live streaming and other purposes.
