Product Center
ATV tool trailer for foam spraying robot

name:ATV tool trailer for foam spraying robot

detailed information息

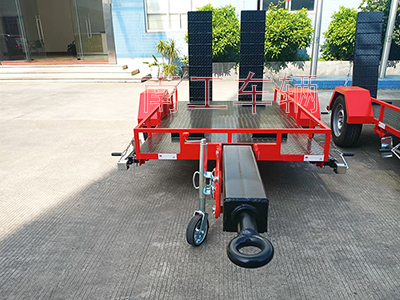

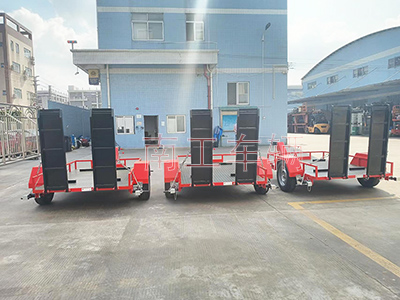

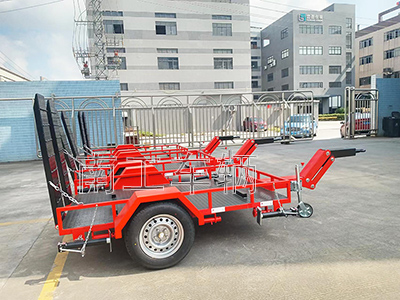

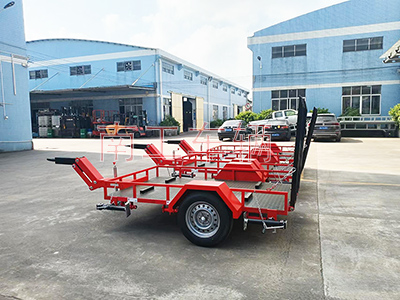

ATV tool trailer for foam spraying robot

Brand: Nangong, Model: NGATV013-15/28-2H, Capacity: 1.3 tons, Table size: 2.8 * 1.5 meters, Tire: 195/70R15LT, Color: Fire Red, Net weight: 530KG;

Detailed parameters of foam spraying robot ATV tool trailer:

1. (The specific implementation shall be based on the technical solution confirmed by both parties);

2. The trailer has a load-bearing capacity of 1.3 tons, and the platform is welded with section steel, with a width of 1.5 meters and a length of 2.8 meters. The board is covered with a 2.5mm thick patterned plate, and the rear of the vehicle is equipped with two overturned climbing ladders (with round steel welded on the surface to prevent slipping). There are fixed guardrails on the front, left, and right sides of the vehicle, with a height of 0.2 meters. The guardrails are equipped with three tightrope tensioners and binding hooks on each side of the vehicle;

3. Each side of the vehicle body is equipped with a hand operated mechanical support leg, and a set of universal wheel support legs are installed at the front traction frame to support the vehicle parallel in normal times;

4. This car is equipped with 2 pneumatic tires with a model of 195/70R15LT, with a rigid suspension and a single wheel bearing capacity of 900KG, with a speed of within 80km/h;

5. Four 8 # channel steels with a length of 0.3 meters are welded above the flat plate of the vehicle body to limit the position of the equipment;

6. Delivery of one connector and one plug;

7. The color of the entire vehicle is alternating between fire red and black, and reflective stickers are pasted around the body;

8. Equip the trailer with a nameplate, issue a certificate of conformity, operation manual, and other relevant materials;

ATV tool trailer for foam spraying robot has been non-standard customized for a long time. The tool trailer is heavy, low cost, and widely used.

Application: It is used for short distance transportation and turnover of hardware parts, small appliances, small tools, etc. This tool trailer is used for foam spraying robots, with beautiful appearance, practicality and durability.

泡沫噴灑機(jī)器人用工具拖車2I.jpg泡沫噴灑機(jī)器人用工具拖車3I.jpg泡沫噴灑機(jī)器人用工具拖車4I.jpg泡沫噴灑機(jī)器人用工具拖車I.jpg
