Brand: Nangong, model: NGTT06SBM-20/50-4S, load capacity: 6 tons, tires: 600-9, board size: 5 * 2 meters, color: military green, net weight: 1570kg;

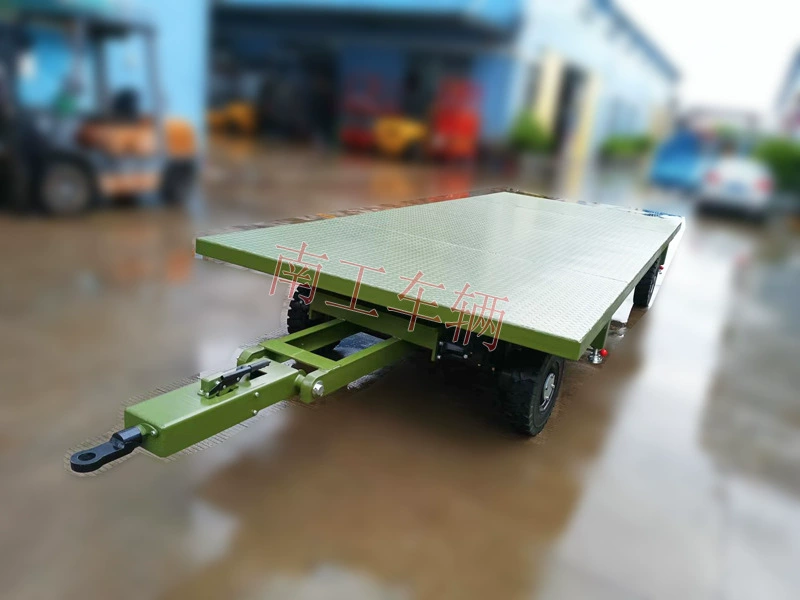

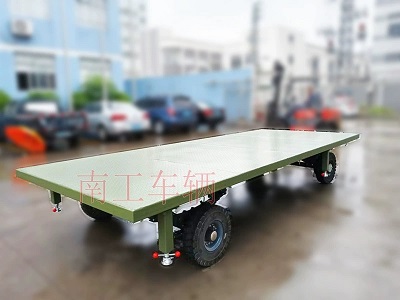

Detailed technical configuration of a 6-ton towing medium-sized flat trailer:

1. This car has a carrying capacity of 6T, a length of 5 meters, a width of 2 meters, and a height of approximately 0.65 meters;

2. The main structure of the platform is welded with 8 # steel, and the platform surface is paved with 5mm thick patterned plates;

3. This car has 4 models of 600-9 solid tires, with a single wheel load capacity of 1.9T and a rated speed of 15KM/H;

4. The left and right rotation angle of the front wheels is 180 degrees, which is convenient for small radius turning;

5. The steering mechanism is a rotary table type machine rotating assembly (6T), which runs smoothly and has a long service life;

6. The traction frame is an adjustable spring buffered traction frame；

7. This car is equipped with a handbrake crash and a leaf spring shock absorber;

8. Three unilateral couplers, equipped with couplings and pins;

9. Equipped with 4 threaded legs around the trailer (raised during driving)

10. Color: Military green.

The 6-ton medium-sized flatbed trailer is a long-term non-standard customized vehicle for Nangong. The flatbed trailer has a low chassis, a large load capacity, and is convenient for forklifts to load and unload goods. It is currently a popular tool trailer in the market.

Application: Flat trailer is used in industries such as railways, ports, warehousing, steel mills, mechanical manufacturing, metallurgy, shipbuilding, etc. It is used for cross workshop, cross cargo stacking, cross warehouse inventory storage, process transfer, and material handling. It is not a road transport vehicle, but is characterized by safety, simplicity, and durability. The flat trailer itself has no power and needs to be towed by a tractor or forklift.
