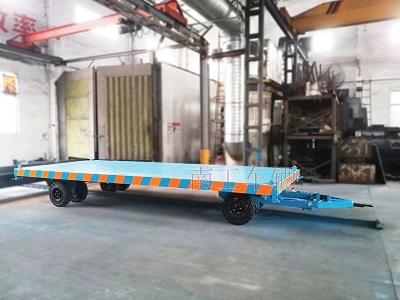

Brand: Nangong, model: NGTT15BM-24/60-8S, load capacity: 15 tons, tires: 650-10, board size: 6.058 * 2.438 meters, color: blue, net weight: 2.6 tons;

Technical requirements for flat trailer (specific implementation shall be based on the plan confirmed by both parties):

1. The flat car has a load-bearing capacity of 15T, a length of 6.058 meters, a width of 2.438 meters, and a height of approximately 0.8 meters;

2. The main beam of the platform is made of 20 # steel, the auxiliary beam is welded with 16 # steel, and the plate surface is made of 4mm thick patterned plate;

3. This car has 8 models of 650-10 solid tires (Zhengxin), with a single wheel load capacity of 2.6T and a rated speed of within 15km/h;

4. The front axle (two wheels) and rear axle (two wheels) of this car are equipped with parking brakes (1 handbrake for each front and rear accessory);

5. The design concept of this car is suspended, and it can adjust the body level and balance the tire load force according to the smoothness of the road surface;

6. The left and right rotation angle of the front wheels is 180 degrees, facilitating small radius steering;

7. The steering mechanism is a rotary table type machine rotating assembly (15T), which operates smoothly and has a long service life;

8. This car is equipped with container corner locks, couplings, and pins around it;

9. The spraying thickness is 240um, and the color is our factory standard blue, with warning stripes sprayed around;

15 ton heavy-duty flatbed trailer Nangong vehicles have long-term non-standard customization, with good quality, excellent price, and fast delivery.

Application: Suitable for use in industries such as ceramics, glass, hardware, plastic, chemical, etc., for short distance turnover transportation in factory areas.
