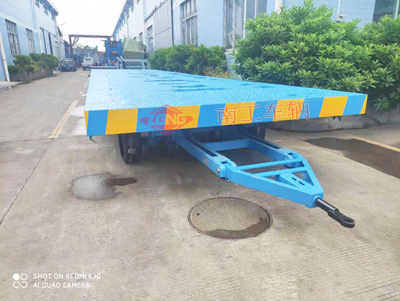

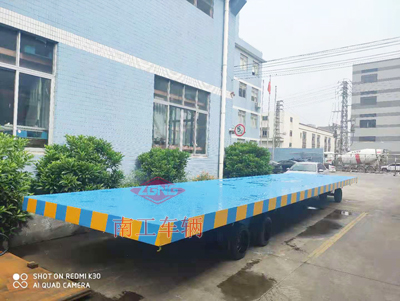

Brand: Nangong, model: PT30-28/120-10S, load capacity: 30 tons, board size: 12 * 2.8 meters, net weight: 7560KG, color: blue;

Technical parameters of a 30 ton heavy-duty unpowered traction full trailer:

1. This vehicle has a load capacity of 30 tons, a table size of 12 * 2.8 meters, and a platform height of approximately 0.96 meters. The main beam is welded with 30 gauge steel composite beams, and the side beam is welded with 20 gauge steel. The surface is paved with 4mm patterned plates, effectively ensuring load-bearing stability;

2. The tires are 12 22 * 9-16 compression tires (Jiuda), with a single wheel bearing capacity of 3.7 tons and a speed of 15km/h;

3. The rotating mechanism is a standard 30 ton machine model that can rotate 180 degrees. The rear wheels can swing and adjust themselves, and the body balance can be adjusted on convex and concave surfaces;

4. Equipped with a 30 ton spring buffered traction frame, the traction mechanism can be adjusted and fixed up and down, and different vehicle models can be easily adjusted for traction. The steel connection frame has a minimum turning radius of 180 degrees and turns in place;

5. Color: Dongfeng Blue, surrounded by yellow warning stripes;

The 30 ton heavy-duty unpowered traction full trailer has been produced in large quantities by Nangong Vehicles for a long time, and the heavy-duty and lightweight specifications and sizes of flatbed trucks can be customized non-standard.

Application: Used for the transit transportation of heavy products such as metallurgy, molds, machinery, and building materials. This type of full trailer has a heavy load, low cost, and long service life.
