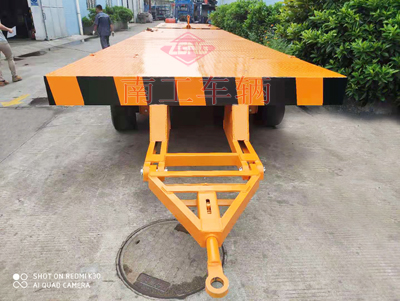

Brand: Nangong, model: NGTT30S-26/90-8S, load capacity: 30 tons, board size: 9 * 2.6 meters, net weight: 5560KG, color: orange;

Detailed parameters of a 30 ton heavy-duty unpowered towing flat trailer:

1. The designed bearing capacity of a single section of the flatbed truck is 30 tons. The main frame of the platform is made of 25 # steel, and the auxiliary beam is made of 14 # steel. The width is 2.6 meters, the length is 9 meters, and the height is about 0.9 meters;

2. This car has a total of 8 maintenance free tires, with models of 22 * 12-16 compression fit solid tires, a single wheel carrying capacity of 5 tons, and a driving speed of 15km/h;

3. The axle adopts a swinging steel suspension, and the national bridge can adjust the tire force point according to the smoothness of the road surface to ensure that the corresponding tire force is balanced;

4. The steering mechanism consists of four independent rotating assemblies with a single load of approximately (10 tons) and a rotation angle of 360 degrees, facilitating small radius turning;

5. Each set of return mechanism can be independently limited, and the operation is simple. Only the limit pin needs to be pulled or inserted. If a single flatbed truck needs to be used, just fix the two rear wheel limit positions;

6. In terms of traction, it is equipped with a double spring buffered traction frame to effectively alleviate the impact force between the tractor and the flatbed during starting or braking, avoiding component damage and cargo damage;

7. Color: Orange, surrounded by orange and black warning stripes;

The 30 ton heavy-duty unpowered traction flat trailer is non-standard customized for Nangong vehicles. The designed frame of Nangong trailer has a service life of 20 years, making it an ideal choice for short distance transportation vehicles and trailers.

Application: Used for the transit transportation of heavy products such as metallurgy, molds, machinery, etc., with heavy load, low cost, and long service life.
