Brand: Nangong, model: NGTT08BS-24/50-8S, load capacity: 8 tons, board size: 5 * 2.4 meters, net weight: 1700KG, color: black;

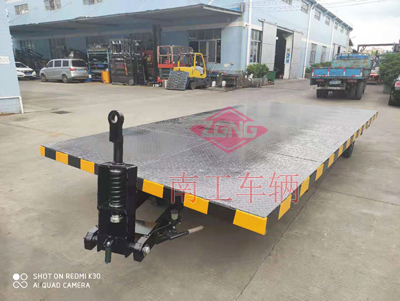

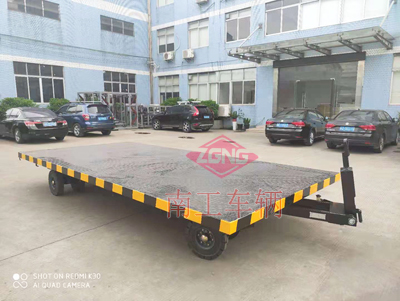

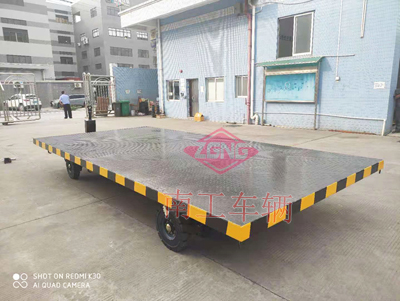

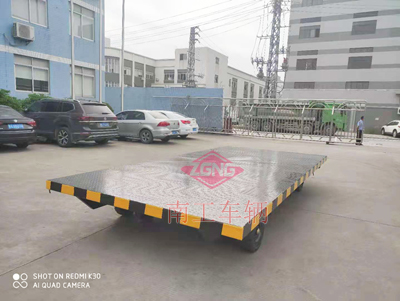

Unpowered forklift towing flat trailer with 8 tons, detailed energy consumption:

1. This car has a carrying capacity of 8T, a length of 5 meters, a width of 2.4 meters, and a height of approximately 0.65 meters;

2. The main structure of the platform is welded with profile steel, and a 4mm thick patterned plate is laid on the platform surface;

3. This car has 8 models of 500-8 solid tires, with a single wheel bearing capacity of 1.2T and a rated speed of 15KM/H;

4. The left and right rotation angle of the front wheels is 180 degrees, which is convenient for small radius turning;

5. The design concept of this car is suspended, and it can adjust the body level and balance the tire load force according to the smoothness of the road surface;

6. The steering mechanism is a rotary table type machine rotating assembly (8T), which runs smoothly and has a long service life;

7. The traction frame is an adjustable spring buffered traction frame;

8. This car is equipped with a handbrake and spring shock absorber;

9. Three unilateral couplers, equipped with couplings and pins;

10. Color: Black, with yellow stripes sprayed around.

Unpowered forklift towing flatbed trailer with 8 tons, long-term non-standard customization of Nangong vehicles, from 1 ton to 120 tons, affordable, and short production cycle

Application: Used for short distance transportation of goods to and from warehouses, docks, factory workshops, airports, logistics gardens, etc. Solid tires are heavy-duty and maintenance free.
