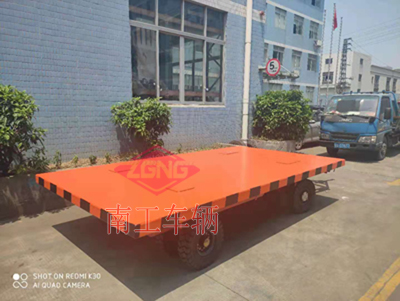

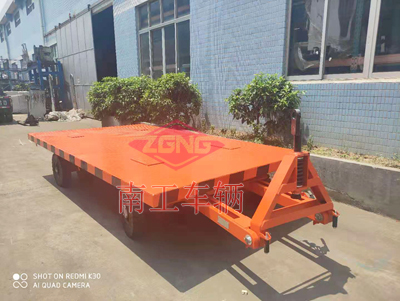

Brand: Nangong, model: NGTT08B-22/40-8S, load capacity: 8 tons, table size: 4 * 2.2 meters, net weight: 1745KG, color: orange;

Technical requirements for 8-ton flatbed trailer: (Specific implementation shall be based on the plan confirmed by both parties)

1. The load capacity is 8T, the main beam is made of 10 # steel, the auxiliary beam is made of 8 # steel, and the table top is paved with 6mm thick patterned plates;

2. Platform size: 4000mm * 2200mm, with a height of approximately 700 mm;

3. The size of the cargo frame (owned by the buyer) placed above the platform is 2900 * 1700 mm, and an 8MM thick reinforcing plate is welded to the bottom of the platform at the four legs of the cargo frame to prevent the support legs from causing depression on the platform surface due to compression.

4. The left and right rotation angle of the front wheels is 180 degrees, which is convenient for small radius turning and transportation;

5. The length of the traction frame is 1.5 meters, and the height is adjustable to ensure docking with the connecting mechanism at the rear of the forklift;

6. The steering mechanism is an 8T turntable type rotating assembly, which runs smoothly and has a long service life;

7. Using 8 solid tires with models 600-9, with a single load of 1.9 tons and a rated speed of 15km/h;

8. This car is equipped with parking brakes (handbrake, two wheel brakes);

9. Delivery of one connector and one plug;

10. Color: Orange, surrounded by black warning stripes.

The 8-ton traction flatbed trailer is customized by Nangong according to customer needs for a long time. The factory uses solid tires for short haul transportation of materials, with heavy load and flexible steering.

Application: Flat trailer is widely used in factories, workshops, warehouses, docks, railways, airports, etc. It is a tool trailer without power and requires forklift traction.
