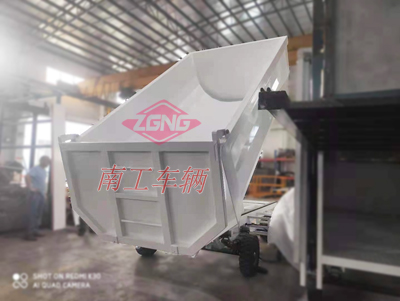

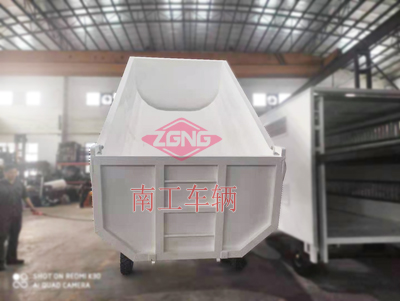

5 ton dump truck without power traction, dump tool trailer

Brand: Nangong, model: NGTT05BV-22/42-4S, load capacity: 5 tons, board size: 4.2 * 2.2 meters, color: white, net weight: 3.5 tons;

5 ton dump truck without power traction, dump tool trailer, detailed parameters:

Technical requirements: (Specific implementation shall be based on the plan confirmed by both parties)

1. This car is a box type flatbed truck equipped with a vertical lifting tailboard. The body of the car is insulated and ventilated, and the chassis has shock absorption and braking functions. The carrying capacity is 5 tons, and the driving speed is 15km/h.

2. The overall dimensions of this car are 4.2 meters in length, 2.2 meters in width, and approximately 2.73 meters in height;

3. The platform main beam is made of 10 # steel, the side beam crossbeam is made of 8 # steel, the carriage is made of fiberglass sandwich panels, the interior is made of stainless steel frame with protective mesh, and the middle partition layer is made of aluminum alloy plate. The height of the partition layer from the ground is 680mm for the first layer and 1810mm for the second layer

4. The traction frame is equipped with a collision brake, and the steering mechanism is a 5T rotary disc type rotating assembly (700 * 66mm);

5. The left and right rotation angle of the front wheels is 180 degrees, which is convenient for small radius turning;

6. The front axle is equipped with dynamic drums, and both front and rear axles are equipped with plate springs for shock absorption. This car has a total of 4 600-9 inflatable solid wheels;

7. Equipped with connectors and pins;

8. Color: Grey, with yellow warning stripes sprayed on both sides.

A dump truck refers to a vehicle that unloads goods on its own through hydraulic or mechanical lifting. Also known as a dump truck, it is composed of components such as a trailer chassis, hydraulic lifting mechanism, cargo compartment, and power take-off device.

The carriage of a dump truck can be divided into two types: backward tilting and lateral tilting. The piston rod movement is controlled by the operating system. Backward tilting is more common, and pushing the piston rod causes the carriage to tilt. This trailer tilts backwards and is powered by a forklift or tractor.

Due to the automatic tilting of the loading carriage at a certain angle for unloading, it greatly saves unloading time and labor, shortens transportation cycles, improves production efficiency, and reduces transportation costs, making it a commonly used specialized transportation vehicle.

A 5-ton dump box type flatbed truck with no power traction, dump tool trailer, and long-term non-standard customization of Nangong vehicles. The loading carriage of the dump truck can automatically tilt to a certain angle for unloading, greatly saving unloading time and labor, shortening transportation cycles, improving production efficiency, and reducing transportation costs. It is a commonly used transportation vehicle.

Application: A dump truck refers to a vehicle that unloads goods on its own through hydraulic or mechanical lifting, used for transporting loose and stackable goods (such as sand, soil, ore, and crops), as well as for transporting packaged goods. Dump trucks mainly serve building materials factories, mines, construction sites, etc.
