輕型工業平板拖車概述

    平板拖車是現代物流運輸中簡單有效的重要工具之一。僅需叉車或牽引車作牽引運動，不耗燃料，具有承重能力強、運輸效率高等優勢，適用于工廠、碼頭、港口、倉庫等場區內大宗貨物周轉運輸。
    As the most efficient carrier in modern logistics’ transportation, industrial full trailer is generally an unpowered vehicle towed by a powered machine. It is commonly used for the transport of heavy duty goods and materials in plant, warehouse, port, oil or mine field etc..

標準型輕型工業平板拖車

    標準型輕型工業平板拖車是按照我公司所制定的配置標準生產的工業平板拖車，本身不附帶其他功能結構。按其承載重量主要分為輕型、中型以及重型三類。

Nangong Standard Industrial Flatbed Full Trailer has divided into light duty, medium duty and heavy duty according to its loading capacity, but not attached any special configurations.

產品特點Product Features

1.使用國標高錳合金鋼，車身加強筋密集，承載能力強，車架20年設計壽命；
2.采用知名品牌輪胎，彈性高，耐磨，質量更有保障；
3.轉盤式回轉機構，性能穩定，180度回轉架，轉彎半徑轉彎（原地轉彎）；
4.高度可調緩沖式牽引機構，不同噸位的牽引頭只需要簡單調節即可連接；牽引架彈簧復位設計，有效減緩牽引架對車架的應力損傷，延長車身使用壽命；
5.懸浮式車架，與傳統硬連接相比，減少車體長期應力損傷，使用壽命更長；
6.輪軸自動擺動調節式，凸凹地面保證板面水平且輪胎受力均衡；
1. Material of Chassis, 20 years’ designed service life, adopting the combination of GB high manganese alloy steel and highly dense reinforcing ribs to ensure large bearing capacity.
2. High quality tires collecting from famous supplier, promise a great performance with the advantage of higher elasticity, stronger wear-resistance and less maintain requirement.
3. Reliable turntable type steering system assembles 180°whirling stands, allowing small radius rotation.
4.Height adjustable buffering dragger helps to manual link different tractor conveniently. Meanwhile, patented designed of return spring effectively help to lessen the mechanical stress on the draw bar, extended the whole trailer’s service life.
5. New suspended bracket is another part for lessening mechanical stress on the whole trailer. Compared with traditional rigid joint, new version service longer period.
6. Automatic swing axle is adjustable and able to ensure cargo boarding in horizon and tires suffering same pressure on rough road.

標準配置Standard configuration

轉盤式回轉結構               實心/空心輪胎      緩沖式牽引架
Turntable type steering system    Solid / Hollow tire    Buffering dragger
懸浮式車架         錳合金鋼車架                  連接器及插銷
Suspended bracket    High manganese alloy steel frame   Coupler and pin
輪軸自動擺動調節             防滑花紋板表面               自制標準車橋
Adjustable automatic swing axle   Checkered plate Covered platform  NanGong axle

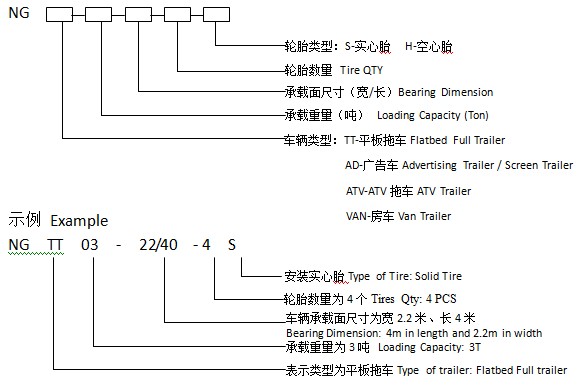

平板拖車型號

輕型工業平板拖車[3-6噸] Light Duty Industrial Flatbed Full Trailer
輕型工業平板拖車適用于小家電、家具、印刷、電器物流等輕工業行業使用。
Light duty version usually applies to the transport of light industrial line, like small household electric appliances, furniture, printing and electrical goods etc

輕型工業平板拖車型號參數

輕型工業平板拖車（3-6噸）南工車輛長期非標訂制，應用場合:輕型工業平板拖車適用于小家電、家具、印刷、電器物流等輕工業行業使用。成本低質量?jī)?yōu)。
